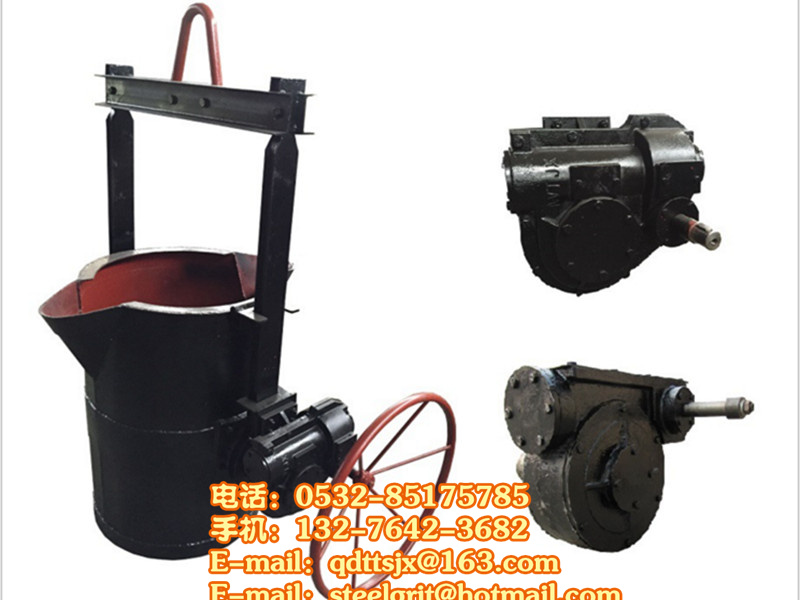

Hot metal ladle

A, hot metal ladle purposes:

Suspension type ladle according to its function can be divided into hot metal ladle, ductile iron, kettle package, ladle

Hot metal ladle for foundry casting operation, in front of the furnace to undertake after iron liquid, by driving to the mould for casting

Second, the main technical parameters of hot metal ladle and overall dimensions:

1, package form, two-way rotary.

2, reducer, double worm wheel pair transmission.

3, speed ratio.

4, shape size.

Three, molten steel water features:

1, reasonable choose the rotary center, convenient operation, casting after the completion of the basic can answer.

2, with double worm wheel pair transmission. Although manufacturing demand is high, but flexible transmission, two-way reversible.

3, derrick used forgings, than steel weldments and reliable safety.

4, inclusion steel plate thicker, the bottom of the package structure by adopting the combination of taper, bottom rim, welding triple insurance, which extended the service life, and ensure the safety of the operator.

5, the main body and derrick, reducer and the handwheel, card board may at any time are equipped with a chain lock.

6, two trunnion and boom to a self-aligning bearing, good consistency.

The hot metal clad steel water package maintenance:

1, lining refractory mortar, its thickness is:

0.5 tons of ~ 3 tons of wall at the bottom of the 60 mm 80 mm;

5 tons of wall at the bottom of the 80 mm 80 mm;

10 tons of wall at the bottom of the 100 mm 100 mm;

More than 10 tons of wall at the bottom of the 150 mm mm;

2, check the handwheel, should live freely, no jam phenomenon.

3, within two trunnion bearing, and molybdenum disulfide grease once a week.

4, check the wheel lock card board is safe and reliable.

5, check whether the slowdown in the lack of oil, check once a week.

6, use for a long time, found the worm gear pair clearance increases, hazardous to safety when pouring, should change the worm gear pair.
