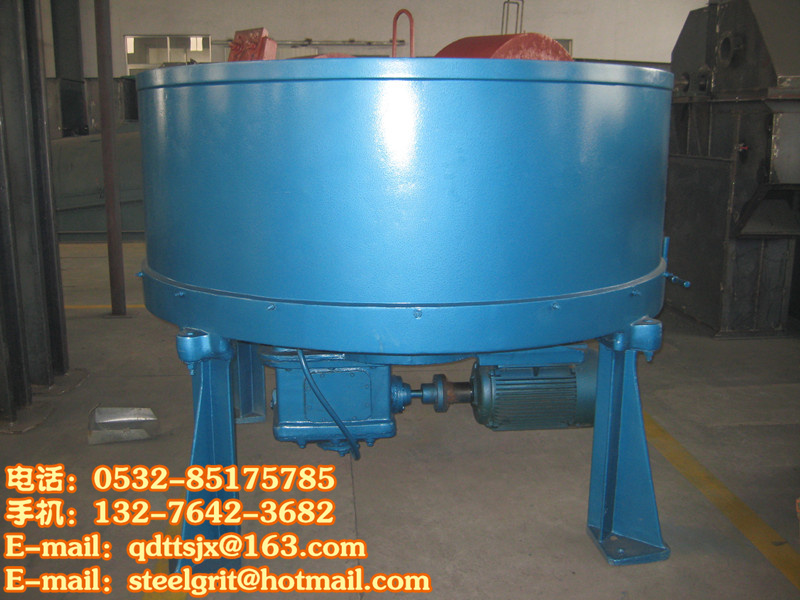

Sand mixer

In green sand sand mixer is to make each ingredient mixing, and makes the adhesives coating on the surface of the sand, equipment effectively. Sand mixer by using the relative motion of the grinding wheel and pan, will be placed in between the two materials are shattered by the effect of crushing and grinding materials, sand mixer in crushing materials will also be material mixing.

The use of sand mixer range:

Pan bottom of sand mixer, pan outer wear armor plates with all improve the effect of crushing, grinding materials and service life of the machine. Grinding wheel on the pan can automatically adjust the height, when faced with difficult to crush materials and too thick layer when the grinding wheel automatic rise to secure them. Purpose: foundry core sand mixing system, etc., can be used for glass, ceramics, chemical industry, building materials, type and other granular or powder material mixing.

Sand mixer main types:

S1110 single or double grinding wheel sand mixer;

S111A single or double grinding wheel sand mixer;

S1112 single or double grinding wheel sand mixer;

S114C single or double grinding wheel sand mixer;

Sand mixing machine installation and debugging:

1, when carrying sand mixer, sand door should be in the closed position, rolling wheel should not be parked in the sand above the door, rolling round bottom plug tight block, should be fixed.

2, don't allow lifting from cross.

Before 3, sand mixer on the ground, should first check whether the ground is flat, can withstand the weight of the sand mixer.

Based on 4, this machine is generally installed in reinforced concrete. If need to install in the metal structure frame, must make the pledge that we shall have sufficient strength and rigidity.

5, the seal cover of the unit by using unit according to the site condition to preparation, cleaning door opening on the seal cover, its size should be considered into the clean is convenient, at ordinary times take place rolling wheel and maintenance.

Sand mixing machine maintenance:

1, should check the oil level of the speed reducer, make its have enough oil. First injection speed reducer lubricating oil must be working in 300-500 hours after the replacement. Normal use after about half a year in a new oil, if discover oil dirty, special reducer should be thoroughly clean again, when an oil change, should pay special attention to a magnetic clean up the oil plug at the bottom of the reducer. Oil pump inlet pipe in the oil filter should be clean up once a month.

2, the machine all lubricating oil must be strictly filtered to join.

3, the machine of the lubrication parts come on time, variety of lubricating oil, refer to sand mixing machine instructions.
