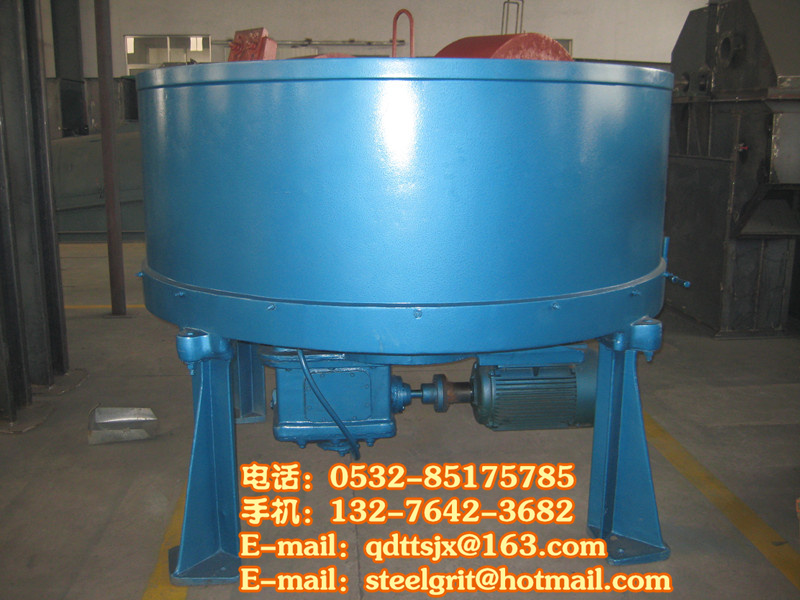

S110 grinding wheel sand mixer

S110 sand mixer description:

S110 sand mixing machine is working organs by a rolling wheel, a sand of the rotor and three scraper. In the process of work, scraper will be rolling disc in the middle of the sand pushing to the rolling wheel workspace, rolling wheel rolling and rubbing research was carried out on the sand; The compaction of sand scraper will turn up and to the sand rotor workspace, High speed rotating rotor sand sand strong mixing and crushing, make rapid mixing various ingredients; Sand scraper will stick in the wall of clean, and the rolling plate sand back the rolling wheel of the outside of the workspace. So the cycle, complete mixing sand the whole process.

The role of S110 sand mixing machine:

Preparation of molding sand, sand mixing machine is indispensable equipment, and is the key factor affecting the quality of molding sand equipment. According to the requirements of the modelling, the core making process, in the process of mixing sand, should meet the two basic requirements:

1) is in the sand composition (new sand, sand, cement, additive and water, etc.) evenly mixed;

2) make adhesive stick in the sand surface effectively. In an ideal world, can make the sand surface evenly package on a layer of adhesive film. To realize these requirements, sand mixing machine work institutions should have the function of the mixing, rolling and rubbing research.

The parameters of the grinding wheel muller:

The name S1110 S111A S125B S114C S1118 S1120D S116C

Disc diameter (mm) Φ 1000 Φ 1220 Φ Φ Φ Φ Φ 2000 1800 1820 1450 1450

A plus shoes (110 kg), 140, 300-400, 500, 500-650, 900, 1000

Productivity (t/h) 1.5 2.5 4 1-6-2.5-10-20 20 13 13 to 15

Spindle speed (r/min) 44 34.7 32.5 34 36, 34, 23

The main motor power (kw) 4 5.5 7.5 15 22 37 22

S110 sand mixing unit into:

Rolling wheel sand mixer by the body, sand mixed run institutions, retarding mechanism, discharge door, such as sampling gate parts

S110 sand mixer features:

S11 series wheel of sand mixer is used for mixing sand and core sand foundry, motor by elastic He Zhu pin coupling and reducer input shaft coupling, a three-level slowdown, namely by the output shaft drives the crosshead do counter clockwise rotation. Fastening at the head of the crank arm, grinding wheel, scraping the sand inside and outside board along with cross rotary together, through the mess up sand plate, grinding wheel rolling, rub, thus completing the process of sand and core sand mixing. Cross, crank arm, turning arm are steel, increase the service life of the machinery. The machine due to the reasonable parameters, advanced structure, which has high efficiency, low energy consumption, compact structure, beautiful appearance, smooth operation does not leak, such as sand, etc.

S110 sand mixing machine commissioning and operation:

1. Motor startup before, sand mixing machine lubrication parts add lubricating oil, the hand moves the crosshead back a week, to see inside and outside the scraper should not be scratches occur with other parts, and turn the wheel by hand should not be stuck or not flexible.

2. Add sand must drive before the experiment, under the condition of normal operation, the machine state is as follows:

(1) cross only along the counterclockwise rotation

(2) inside and outside the blown sand plate no scratches

(3) the reducer without severe noise and abnormal vibration

3. After in the above two requirements can be charging for load test and production.

Second, the operating

1. Start the motor making machine.

2. Add configured sand as required.

3. The mixing 2 ~ 3 minutes to join the need of water.

4. According to the requirements of the green sand process, after a certain time, identify its quality sample taken by sampling gate, qualified after open the unloading door, the sand discharge.

5. After unloading the material, the discharging door closed, and mixed with the second secondary material.

S110 sand mixer application:

Foundry core sand mixing system, etc., can be used for glass, ceramics, chemical industry, building materials, type and other granular or powder material mixing. S110 sand mixer cover an area of an area small, being a small workshop space, dosing device is simple and can save the plant and equipment investment.
