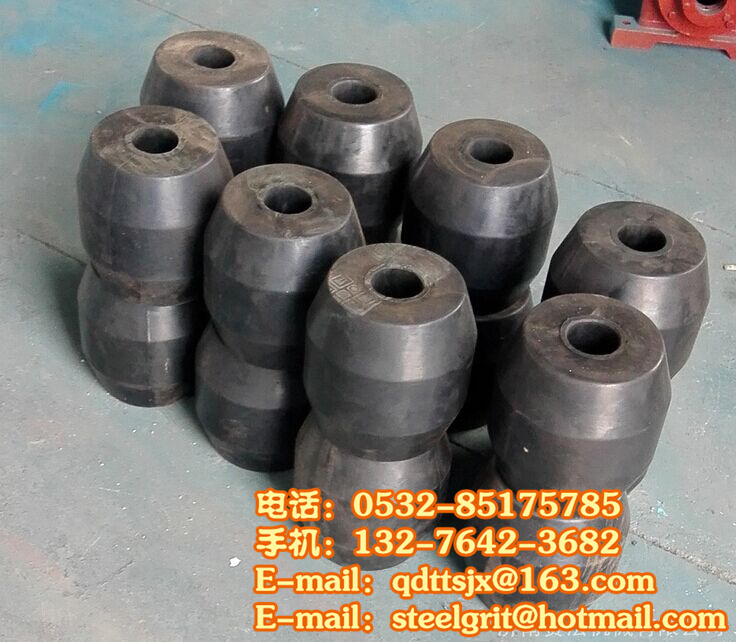

Rubber spring

Compound rubber spring: by metal helical spring and the high quality rubber constitute of outside package. Integrating the advantages of metal spring and rubber spring, overcome the metal spring rigidity, high working noise and rubber spring bearing the weight of small, poor stability of shape and mechanical properties of faults. Have a higher load capacity and large deformation, damping noise reduction effect is better, smooth work, resonance interval short, etc.

Rubber spring features:

1, has good elasticity, compared with steel spring are more likely to absorb shock and vibration.

2, it is easier to control the deformation, the size of its impact on the deformation, can adjust the hardness of the rubber to be addressed, simple and convenient.

3, is not afraid of rust, under the environment of damp climate steel spring rubber spring won't be easy to rust.

4, the damping effect is good, from the damping effect analysis, under the same conditions its damping effect is better than that of steel spring.

5, to install, because the rubber spring easy to deformation during the installation process can reduce equipment investment.

6, use cost low, the use of rubber with cheap cost.

Notice of the design and the use of the rubber spring:

1 when the design should be based on screening material, environment and conditions, and the proportion of material itself, such as electrostatic choose suitable rubber material;

2 have to pay attention to the rubber and metal bonding degree, avoid the bonding surface stress concentration;

3 technically for shear deformation vibration isolator, in order to improve the life, usually in the direction of vertical shear give appropriate compression, compression direction stiffness harden and direction of shear stiffness softening;

There is resistance is bound to consume energy, this part of the loss of energy into heat energy, and the rubber is a poor conductor of heat, in order to prevent the high temperature property of rubber vibration isolator, rubber vibration isolator for too large, easy to heat dissipation measures should be taken from the structure, or choose heat generating less natural rubber material. Because of the rubber vibration isolator can transform energy into heat energy, reduces the vibration energy, achieve damping, so often will be called vibration isolation system.

5, regular maintenance and replacement of damping spring, vibration isolator should avoid long-term work under tensile state;
